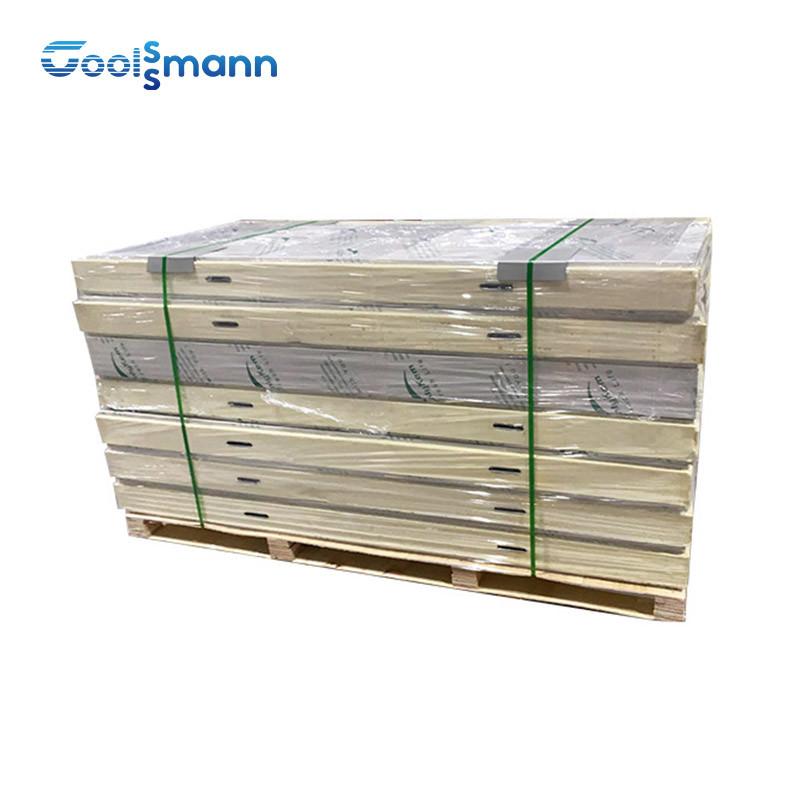

Polyurethane Insulation Cold Room Freezer Use Warehouse PU Sandwich Board Panel
| Place of Origin | China Shangdong Qingdao |
|---|---|
| Brand Name | Coolssmann Corporation |
| Certification | CE、RoHS、ISO、CCC、CCC、CB、SASO、EMC、GS、ETL |
| Model Number | Cold room |
| Minimum Order Quantity | 2 |
| Packaging Details | Synthetic wood packaging |
| Delivery Time | 15-25weekday |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram, |
| Supply Ability | 2000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Feature | Heat Preservation And Refrigeration | Aspect | Custom |
|---|---|---|---|
| Surface Pattern | Plain, Corrugated, Embossed, Embossed | Combustion Characteristic | Polyurethane B1-B3 Grade |
| Materials | Polyurethane Insulation | Panel Thickness | 50mm,75mm,100mm,150mm,200mm |
| Highlight | Polyurethane Insulation Cold Room Freezer,Sandwich Board Cold Room Freezer,Sandwich PU Insulation Panel |
||
Product Description
Commercial Cold Storage Warehouse Insulation Sandwich Board Cold Storage
Product Features
1. (Polyurethane) Cold storage partition thickness standards: 75, 100, 120, 150, 200mm
2. Using colored steel plates, stainless steel plates, aluminum plates and other metal materials as the surface layer,
3. The combination of superior thermal insulation performance and excellent mechanical strength of materials
4. Cold storage board (polyurethane), cold storage board (PU) containing fillers, generally made of polyurethane,
5. The cold storage board is made of lightweight polyurethane with good insulation performance as the inner layer material
6. It has the characteristics of convenient and fast assembly, long insulation life, simple maintenance, low cost, and superior to natural light, making it one of the best materials for cold storage insulation body selection
7. The sandwich storage board composed of SII, PVC color steel plate, and stainless steel plate on the outside can reduce the temperature difference between the inside and outside, achieving the maximum efficiency of the refrigeration and refrigeration system.
Product Table
| Item | Data | Description |
| Thermal conductivity | ≦0.023w/m.k | The thermal conductivity is very low, 5cm thick cold storage plate is equivalent to 100cm thick concrete insulation effect |
| Core material | High level | 40-47kg/m3 |
| Obturator rate | Above 97% | Waterproof and moisture-proof, no increase in thermal conductivity due to moisture absorption, and no water seepage on the wall |
| Thickness | Custom made | 20-300mm |
| Weather ability | Lasting | After more than 6 months of weather resistance test, the performance is stable |
| Stability | Excellent | The compressive strength is over 180kp, and the temperature resistance of the plate is good, without deformation |
| Flame retardant property | Excellent | According to the inspection of the national fire protection building material quality supervision and testing center, all quality changes have reached gb8624b1, which is a thermosetting material. The alkene is burned and carbonized into ashes, and it can be extinguished without dripping or spreading |
| Environment friendly | Excellent | After high-pressure foaming, the Polyurethane insulated panel for cold storage conforms to the European environmental protection standard, free of formaldehyde and microbial attack |
Thickness parameter
| Thickness of polyurethane panel | Application temperature |
| 50mm | Temperature 5℃ or above |
| 75mm | Temperature -5℃ or above |
| 100mm | Temperature -15℃ or above |
| 120mm | Temperature -25℃ or above |
| 150mm | Temperature -35℃ or above |
| 200mm | Temperature -45℃ or above |
Product Details Selling Points
1.The preferred material is well insulated. It belongs to non-combustible material, which is difficult to burn in the air and extinguish from fire.
2.The obturator rate of hard polyurethane is more than 95%, which belongs to impermeable waterproof material. It will not increase thermal conductivity due to moisture absorption, and the wall will not seep water.
3.Various thicknesses are available for selection: 50mm, 75mm, 150mm, 100mm, 120mm, 200mm
